11120 Watershed
Description
DSM’s Somos

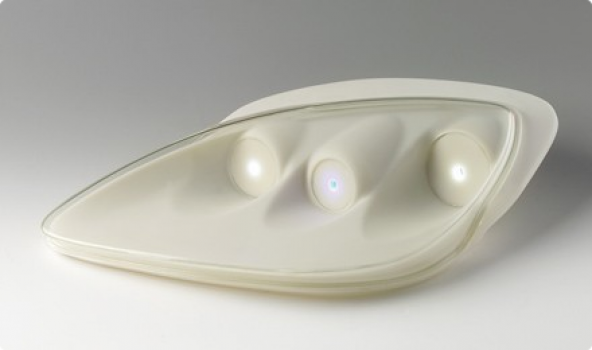

WaterShed 11120 is a low viscosity liquid photopolymer that
produces strong, tough, water-resistant, ABS-like parts. Most importantly,
parts created with Somos
WaterShed 11120 are nearly colorless, and look
more like true, clear engineered plastic.
In addition, Somos
WaterShed has been formulated with the DSM’s Somos
Oxetane Advantage
an advanced chemistry platform that produces parts
with outstanding water resistance and high dimensional stability.
Additional information
Specification: 11120 Watershed
| Header | 11120 Watershed |
|---|---|
| Brand | Somos |
| Material name | 11120 Watershed |
| Technology | SLA / DLP |
| How it comes | Resin |
| Properties | 3D Printer Resins |
| General material type | Resin |
| Material group specific material type | Transparent Resin |
| Colour | Clear |
| Datasheet | https://dl.airtable.com/0uMil6YRraN1kVwouZNQ_Somos%20WaterShed%20XC%2011122%20SS-PDS%20Letter.pdf |
| Tensile strength ultimate xy in mpa | 47.1 |
| Elongation at break xy | 11 |
| Elongation at yield xy | 3.3 |
| Flexural strength xy in mpa | 63.1 |
| Flexural modulus xy in mpa | 2255 |
| Flexural strain at break xy | 2650 |
| Impact strength | Low |
| Graves tear n m | 150288 |
| Shore hardness shore d a | 86 D |
| Glass transition temperature | 39 |
| Heat deflection temperature 0 45mpa | 45.9 |
| Heat deflection temperature 1 82mpa | 49 |
| Dielectric constant 1 khz | 3.7 |
| Density g cm | 1.12 |
| Water absorption | 0.35 |
