9420
Description

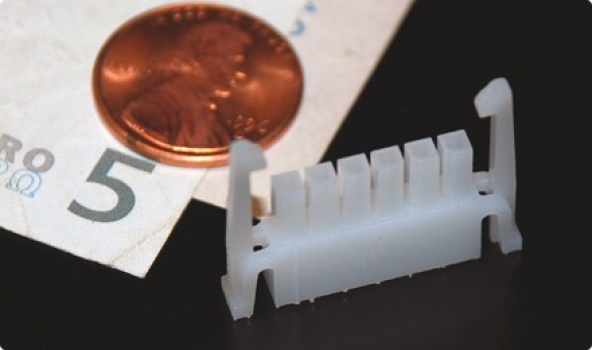

Somos 9420 is an opaque white stereolithography resin that is easy to use and
fast to process. This stereolithography resin produces accurate parts that are semi-
flexible. Parts produced with Somos 9420 are comparable to polypropylene in
mechanical properties and offer a good combination of flexibility and toughness.
Somos 9420 is ideal for applications such as the design and testing of snap-fits,
electronic and automobile components as well as packaging.
Additional information
Specification: 9420
| Header | 9420 |
|---|---|
| Brand | Somos |
| Material name | 9420 |
| Technology | SLA / DLP |
| How it comes | Resin |
| Properties | 3D Printer Resins |
| General material type | Resin |
| Material group specific material type | Durable Resin (PP-like) |
| Colour | Clear |
| Datasheet | https://dl.airtable.com/7t4NKdANRcK9aHNLXKZ1_Somos%209420%20SS-PDS%20-%20A4%20.pdf |
| Tensile strength ultimate xy in mpa | 19 |
| Elongation at break xy | 28 |
| Flexural strength xy in mpa | 27 |
| Flexural modulus xy in mpa | 834 |
| Modulus of elasticity xy in mpa | 700 |
| Impact strength | Low |
| Shore hardness shore d a | 72 D |
| Heat deflection temperature 0 45mpa | 49 |
| Heat deflection temperature 1 82mpa | 37 |
| Water absorption | 0.93 |
