FPU 50
Description

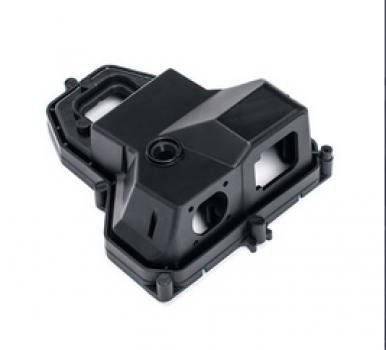

FPU 5 0 is an impact, abrasion and fatigue resistant semi-rigid material that is a good choice for parts that must withstand repetitive stresses such as living hinges or friction fits.
Additional information
Specification: FPU 50
| Header | FPU 50 |
|---|---|
| Brand | Carbon3D |
| Material name | FPU 50 |
| Technology | SLA / DLP |
| How it comes | Resin |
| Properties | 3D Printer Resins |
| General material type | Resin |
| Material group specific material type | Durable Resin (PP-like) |
| Colour | Black |
| Datasheet | https://dl.airtable.com/CipEOWpQHSl1iM0L6285_103215-A-FPU%2050-TDS.pdf |
| Tensile strength ultimate xy in mpa | 29 |
| Tensile strength yield xy in mpa | 20 |
| Elongation at break xy | 280 |
| Elongation at yield xy | 7 |
| Flexural strength xy in mpa | 32 |
| Flexural modulus xy in mpa | 831 |
| Modulus of elasticity xy in mpa | 860 |
| Impact strength | Medium |
| Shore hardness shore d a | 71 D |
| Heat deflection temperature 0 45mpa | 78 |
| Heat deflection temperature 1 82mpa | 52 |
| Dielectric strength min v mm | 13000 |
| Volume resistivity max cm | 18.7 10__ |
| Dielectric constant 1 khz | 3.21 |
| Density g cm | 1.053 |
| Water absorption | 0.42 |
| Legal disclaimer | 3DC LTD is not liable for the accuracy of the information contained within this database. Please consult directly with the relevant machine and/or material manufacturers before determining fitness for a particular use. |
