PA 2202 Black
Description

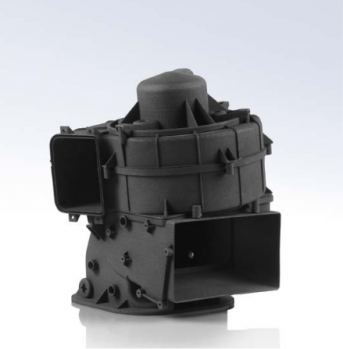

PA 2202 black is a pigment-filled polyamide 12 powder for manufacturing laser sintered parts that are black throughout. All other part properties are comparable to those of PA 2200. Typical applications for the material are fully functional parts in design quality subject to high mechanical or thermal loads. The parts are black and often look better in technical areas than white parts. As this colour is throughout, scratches or subsequent holes do not degrade the appearance. The parts are also less susceptible to soiling, as soiling is less conspicuous against the black background. The black colour can also be used to differentiate the parts from parts in other colours to prevent confusion.
Additional information
Specification: PA 2202 Black
| Header | PA 2202 Black |
|---|---|
| Brand | EOS |
| Material name | PA 2202 Black |
| Technology | SLS |
| How it comes | SLS Powder |
| General material type | Thermoplastic |
| Material group specific material type | Nylon |
| Colour | Black |
| Datasheet | https://dl.airtable.com/agBAhV5JQuqlWp3sgV3w_PA2202black.pdf |
| Tensile strength ultimate xy in mpa | 50 |
| Elongation at break xy | 12 |
| Flexural strength xy in mpa | 53 |
| Flexural modulus xy in mpa | 1350 |
| Modulus of elasticity xy in mpa | 1850 |
| Shore hardness shore d a | 75 D |
| Heat deflection temperature 0 45mpa | 154 |
| Heat deflection temperature 1 82mpa | 75 |
| Density g cm | 0.98 |
| Legal disclaimer | 3DC LTD is not liable for the accuracy of the information contained within this database. Please consult directly with the relevant machine and/or material manufacturers before determining fitness for a particular use. |
