WIC100 Series
Description

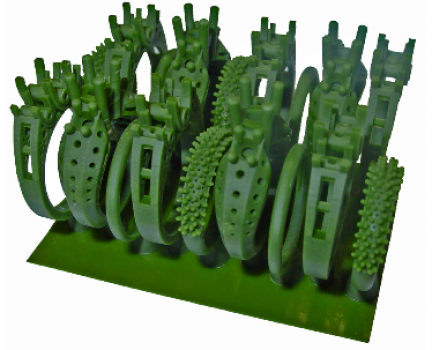

The EnvisionTEC WIC100G resin was formulated for casting jewelry. The nano-wax content offers a clean burn out with the highest reproduction details. Wax casting is easy from the WIC100G resin when using a standard wax burn out cycle with a regular gypsum investment. During the burn out cycle, the nano-wax melts away first allowing the resin to burn off without excessive expansion or pressure from degassing which is a problem normally associated with polymer based materials during the burn out cycle. WIC100G is a photo cured hybrid resin system that produces the highest quality part details without sacrificing strength, ease of handling, and finishing. Highest quality detailed parts, excellent burn out properties, and high speed building allows the WIC100G to be optimal for use in Jewelry market for production of master patterns for direct investment casting.
Additional information
Specification: WIC100 Series
| Header | WIC100 Series |
|---|---|
| Brand | EnvisionTec |
| Material name | WIC100 Series |
| Technology | SLA / DLP |
| How it comes | Resin |
| Properties | 3D Printer Resins |
| General material type | Resin |
| Material group specific material type | Castable Resin |
| Colour | Green |
| Datasheet | https://dl.airtable.com/1tzKoV4RUKsX4qCKu87e_MK-MTS-WIC100G-V01-FN-EN.pdf |
| Elongation at break xy | 6 |
| Shore hardness shore d a | 80 D |
| Legal disclaimer | 3DC LTD is not liable for the accuracy of the information contained within this database. Please consult directly with the relevant machine and/or material manufacturers before determining fitness for a particular use. |
