CAD Model Edit API

You need to make changes to your 3D model and the CAD Model Edit API can help.

DESCRIPTION

This API gives you the freedom to create the perfect CAD design for you. Control every part of your design by rotating the mesh, mirror, and even scale your models. Rotation is counter-clockwise along the positive axis towards the origin and mirroring is possible along any axis.

Key Features

Here are the key features that make this API outstanding

Mirror Planes

Mirroring involves reversing the sign of all the coordinates in a particular axis.

Rotate Axes

Rotate the entire mesh about the specified axis by the given number of degrees.

Speed

Very fast - render is done in a matter of seconds.

Link

Scaling

Scale the mesh by the given factor.

Provided in JSON

JSON response.

Easy to Use

Quickly take the dimensions of any 3D model produced in any CAM or CAD software.

Link to documents.

How Does it Work?

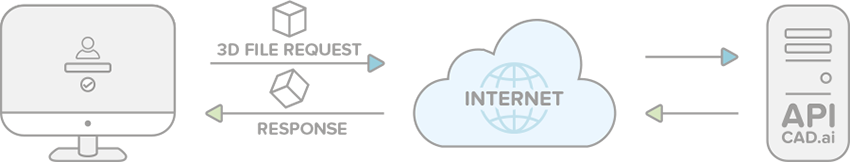

Data flow of the CAD Model Edit API

Video Guide

Here is short description on how to use CAD Model Edit API

Speed Test

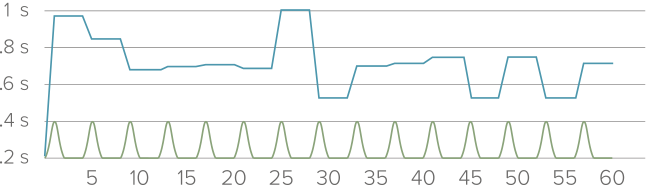

Test Data Visualization

Example of standard load test, obtaining the data from consecutive file uploads for every 5 seconds.Average speed is 600 ms.

How to Install API

Our step-by-step guide documents the installation of the API and you can find it in the Docs Page below.

Support is available anytime, contact us and we are happy to help.

Visit Viewer API Installation Documentation
