CAD Model parameter Extraction API

More versatile and helpful parameter extraction API.

DESCRIPTION

Parameters to take into account before 3D printing a 3D model are the dimensions, volume, and bounding box. You take these numbers to a 3D printing company and they use them to calculate and bill you for any given CAD design. For getting price quotes, billing, and additive manufacture, this API is a must

Key Features

Here are the key features that make this API outstanding

Speed

Speed up your workflow with the fastest response times on the web.
Link to graph.

Calculate the Volume of Model

Easily calculate the volume of the 3D model file.

Link to graph.

Bounding Box Dimensions

Prepare the bounding box dimensions of your 3D models for design, scaling, and printing.

3D Model Dimensions

You get the precisely the dimensions you need for preparing your CAD file for 3D printing.

Provided in JSON

JSON response.

Easy to Use

Quickly take the dimensions of any 3D model produced in any CAM or CAD software.

Link to documents.

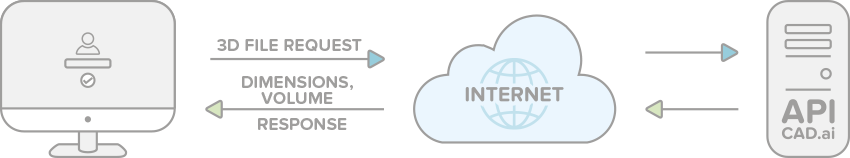

How Does it Work?

Repair API data request/response flow

Video Guide

Video description and narration. Here is short description on how to use CAD.ai Model Viewer API.

Speed Test

Test Data Visualization

Example of standard load test, obtaining the data from consecutive file uploads for every 5 seconds.Average speed is 600 ms.

How to Install API

Our step-by-step guide documents the installation of the API and you can find it in the Docs Page below.

Support is available anytime, contact us and we are happy to help.

Visit Viewer API Installation Documentation
